FLIR Boson+ 320

Made in the USA, the Boson longwave infrared (LWIR) OEM thermal camera module set the standard for size, weight, power, and performance (SWaP). Utilizing Teledyne FLIR's advanced image processing and several industry-standard communication interfaces, Boson enables applications from firefighting to unmanned aircraft systems (UAS), security, and automotive development kits, all for as little as 600 mW.

The 12 µm uncooled detector comes in two resolutions – 640 × 512 or 320 × 256 – and multiple frame rate options. Radiometric models offer absolute temperature measurement. With multiple lens configurations also available, Boson offers the widest range of LWIR models from Teledyne FLIR and the most flexibility to integration programs. The easy-to-use Boson SDK, user-friendly GUI, and comprehensive product integration documentation further simplify OEM integrated into higher-level systems.

For a plug-and-play sensitivity upgrade, the new Boson+, provides an industry-leading NeDT of <20 mK.

ADVANCED PERFORMANCE WITH IMPROVED THERMAL SENSITIVITY CONTRAST, AND LATENCY
Industry leading NEDT of ≤20 mK extends thermal scene details and detection, recognition, and identification (DRI) performance

INDUSTRY-LEADING SIZE, WEIGHT, AND POWER (SWAP)
A full-featured VGA LWIR thermal camera module just 7.5 grams and less than 4.9 cm³

DESIGNED FOR INTEGRATORS
Shared mechanical/electrical compatibility across all Boson provides plug-and-play with existing designs

Resources

Boson+ Datasheet

SPECIFICATIONS

• Pixel Size
• 12 µm
• Frame Rate Options
• 60Hz baseline; 30 Hz runtime selectable

PERFORMANCE

• Thermal Spectral Range
• Longwave infrared; 8 µm – 14 µm

IMAGING & OPTICAL

• Array format
• 320 x 256
• Continuous Electronic Zoom
• 1X to 8X zoom
• f-number
• 1.0
• Frame Rate Options
• 60Hz baseline; 30 Hz runtime selectable (9Hz available)
• Image Orientation
• Adjustable (vertical flip and/or horizontal flip)
• Non-Uniformity Correction (NUC)
• Factory calibrated; updated FFCs with FLIR’s Silent Shutterless NUC (SSN™)
• Pixel Size
• 12 µm
• Scene Dynamic Range
• to 120 °C (high gain)
• Snapshots
• Full-frame snapshot via Boson GUI
• Symbol overlay
• Re-writable each frame; alpha blending for translucent overlay
• Thermal Sensitivity
• <20 mK (Industrial); <30 mK (Professional)

CONNECTIONS & COMMUNICATIONS

• Control Channels
• UART or USB
• Peripheral Channels
• I2C, SPI, SDIO
• Video Channels
• CMOS or USB2

ELECTRICAL

• Input Voltage
• 3.3 VDC
• Power Dissipation
• Varies by configuration; as low as 500 mW

MECHANICAL

• Precision Mounting Holes
• Four tapped M1.6x0.35 (rear cover)
• Size (w/o lens)
• 21 × 11 mm
• Weight
• 7.5 g without lens (configuration dependent)

ENVIRONMENTAL & APPROVALS

• Non-Operating Temperature Range
• -50°C to 85°C
• Operating Temperature Range
• -40°C to 80°C
• Operational Altitude
• 12 km (max altitude of a commercial airliner or airborne platform)
• Shock
• 1,500 g @ 0.4 msec
• Solar protection
• Integral

Important Notes

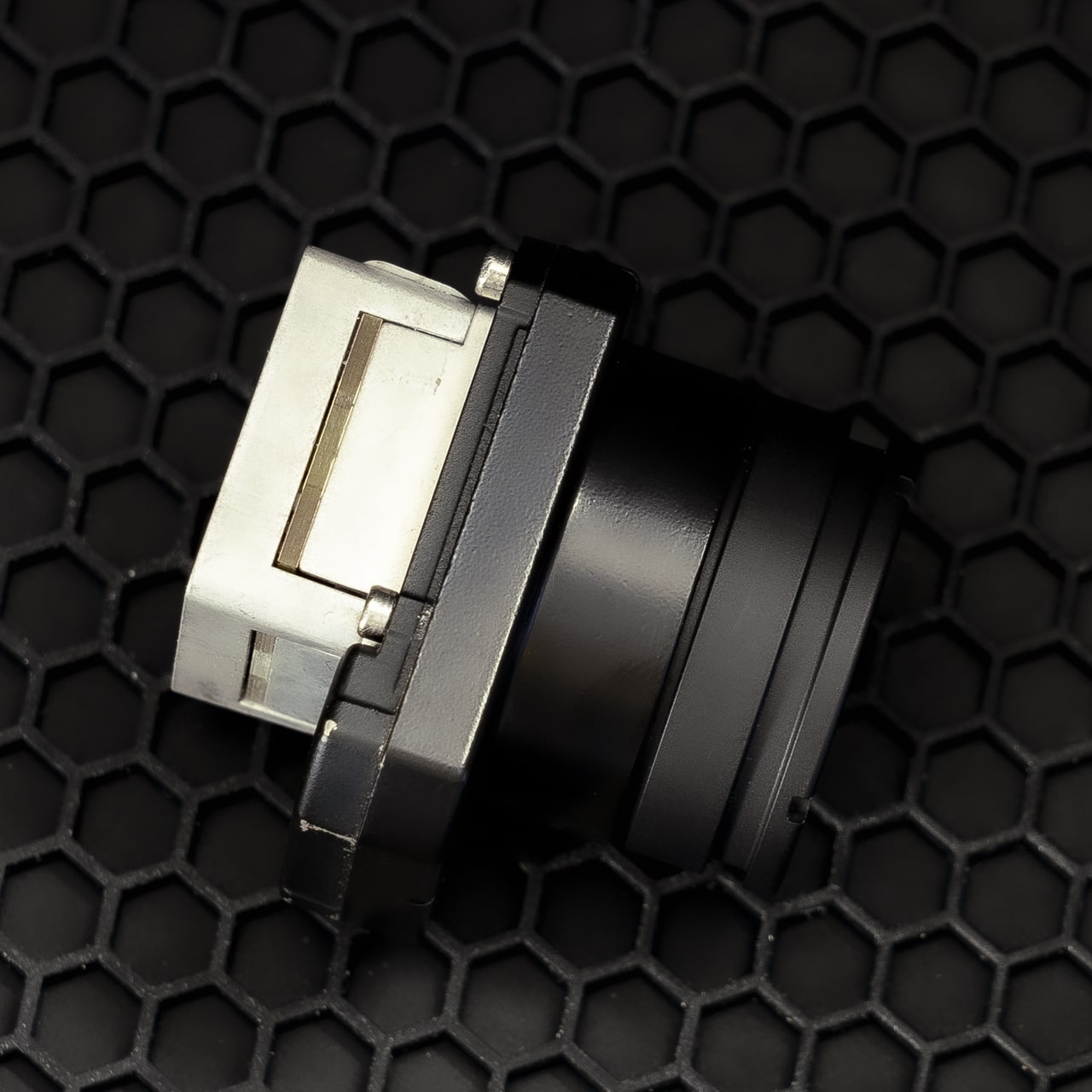

• Your Boson may look different than pictured.
• All international customers that are ordering any Thermal Imaging Camera will be required to fill out an End Use Statement document before shipment. Once you place your order we will send you an email with the documents.
• All US orders will get 60Hz cameras unless you contact us (help@groupgets.com)
• We can ship 60 Hz cameras to certain other countries (listed below) but it will require some additional documents before shipment. All other international orders will receive a 9Hz camera.
• The authorized export, reexport and transfer countries for 60Hz cameras are: Argentina, Australia, Austria, Belgium, Bulgaria, Canada, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Japan, Latvia, Lithuania, Luxembourg, Netherlands, New Zealand, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, South Korea, Spain, Sweden, Switzerland, Turkey, the United Kingdom.

🕑Lead Time🕑

Approximately 16 Weeks from when your order is placed for < 10 units (if greater than 10 email us for the most accurate lead time). Your whole order will ship together.
